EHP-1, Built in model.

Name: EHP-1, Built in model.
SKU: EHP-1
Price: 117.00 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s)

Add your review

EHP-1 is a 3" LED light. 40 or 60 degree light beam, 2800 lumen effective ! Much brighter light than OEM LED lights ! AGCO PN # 72438177

Manufacturer: Thomas LED

EHP-1 60°, Built in model.

EHP-1 is a 3" LED light. 60 degree light beam, 2800 lumen effective ! Much brighter light than OEM LED lights ! AGCO PN # 72438177

SKU: LL0524

Availability:

In stock

$117.00

Qty:

+ -

EHP-1 40°, Built in model.

EHP-1 is a 3" LED light. 40 degree light beam, 2800 lumen effective ! Much brighter light than OEM LED lights ! Narrow flood 40° - better distance than the 60° flood. AGCO PN # 72438177

SKU: LL0523

Availability:

In stock

$117.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

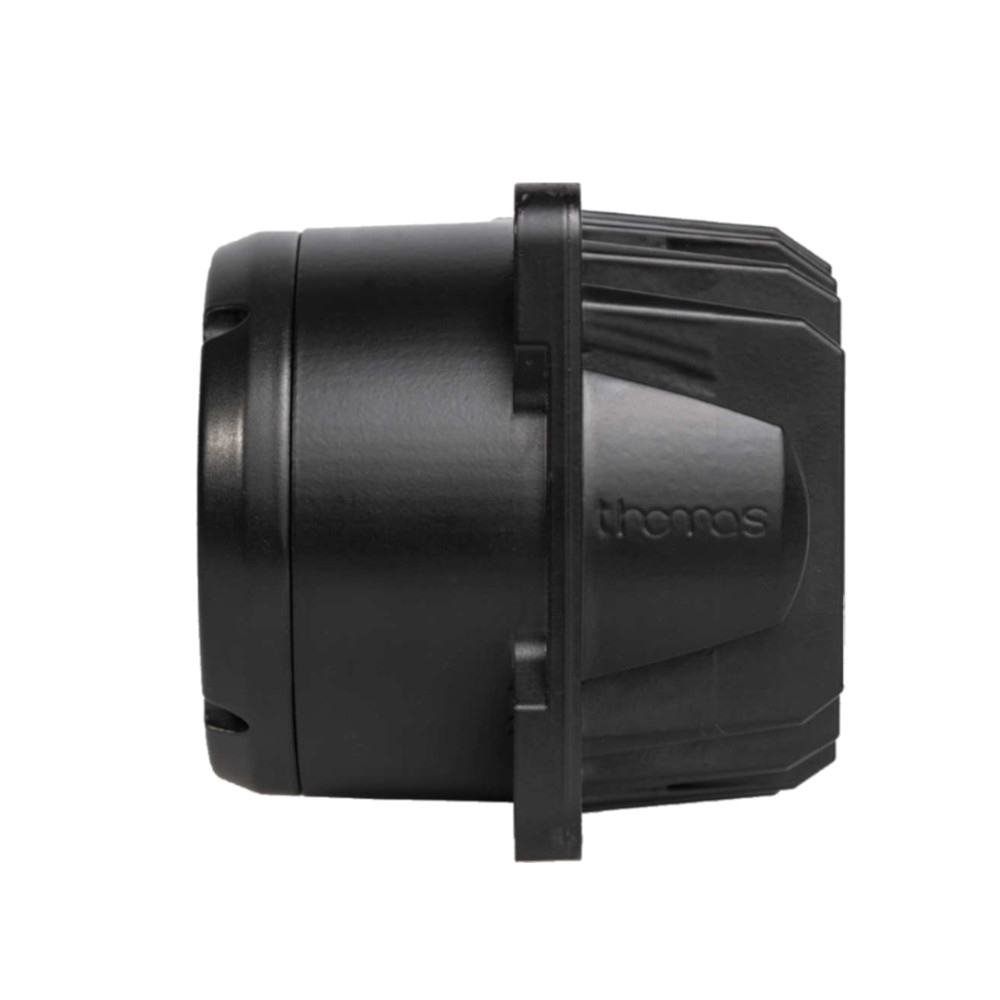

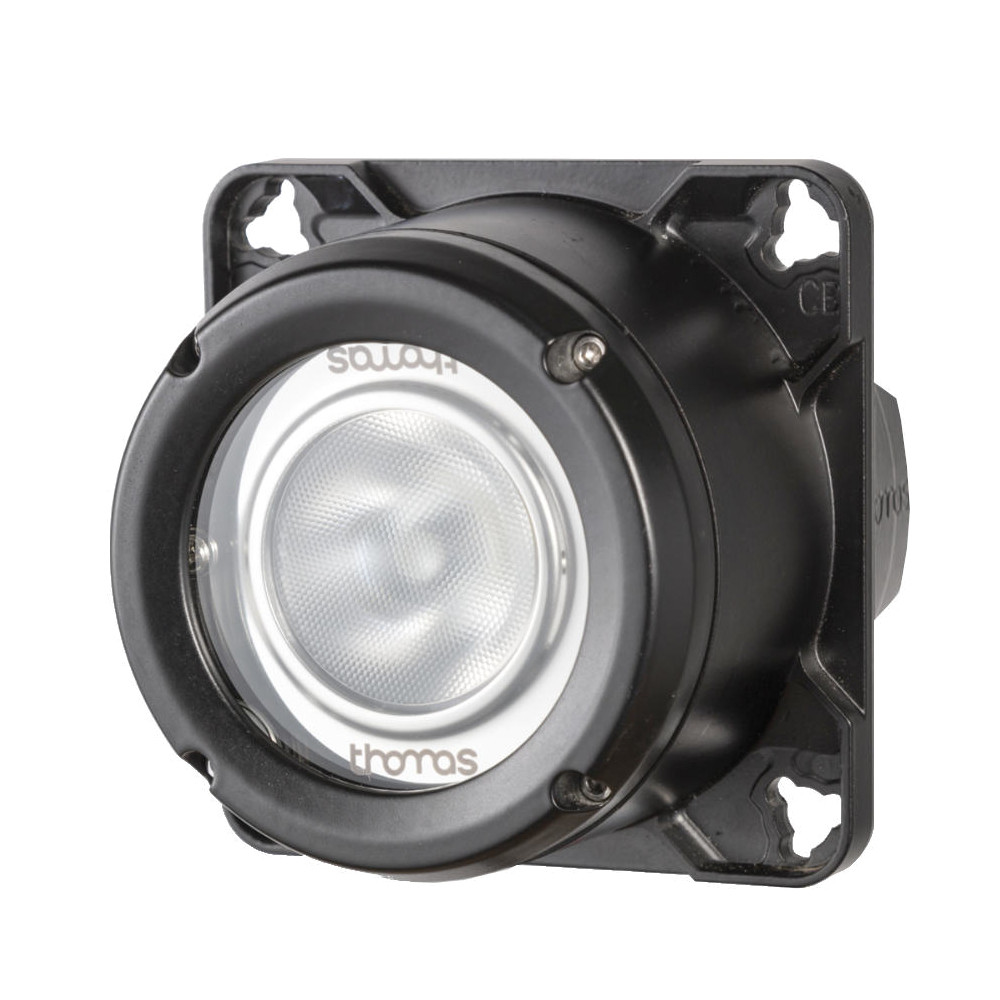

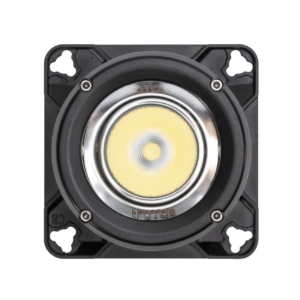

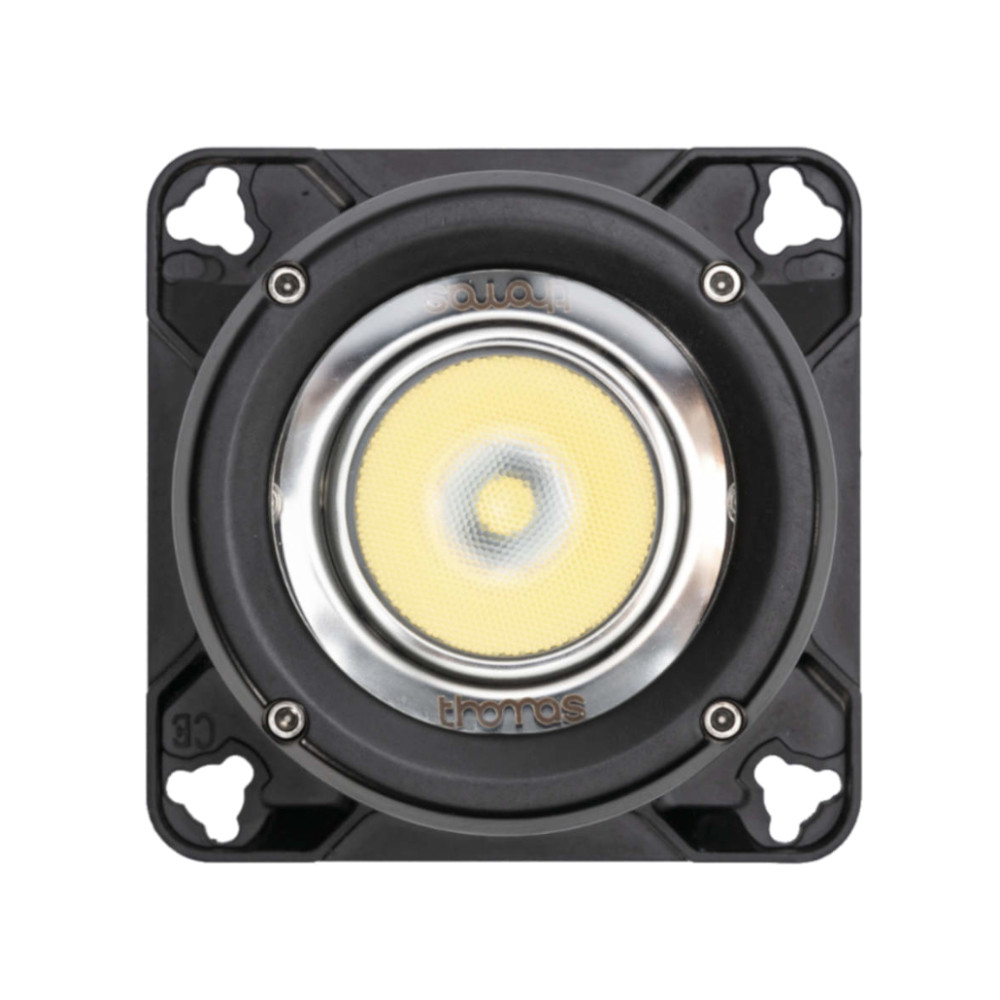

EHP-1 Thomas LED - Built in model.

Very powerful light at 2000 effective lumen! 60° flood beam or 40° Trapezoid.

The quality and output of the Thomas brand are among the best in the industry!

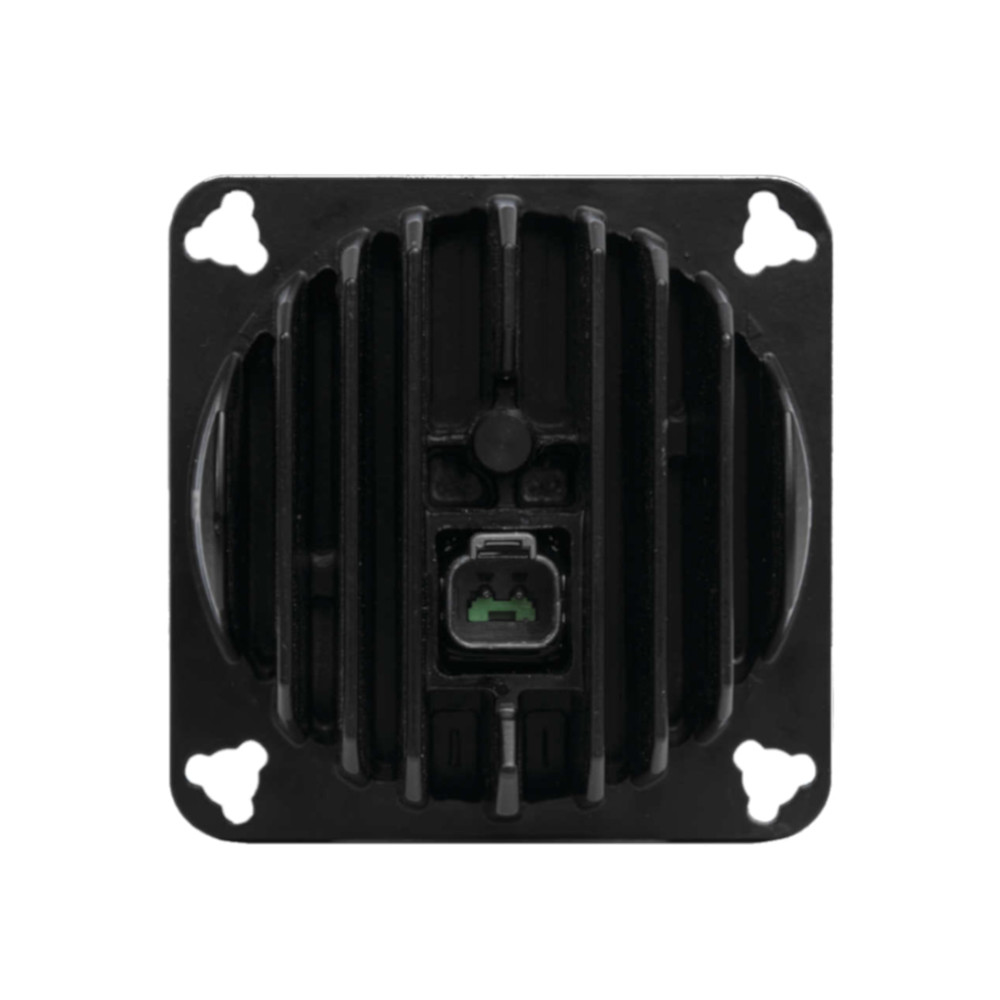

This light uses an integrated DT connector - a cable is included that will connect to the light and ends in bare wires for you to add a connector of your choice.

DT to 9005/H9/H11/880 and other cables can be ordered here https://www.larsenlights.com/adapter-cables

Specs :

Manufacturer THOMAS
Model THOMAS HP1-60
LED 1 piece CREE High Power LED
Lumen effectively 2000 at 5700 Kelvin
Color temperature 5700
Power 22 watts 94 lumens per watt
Power consumption 1.65 A at 13.5 volts
Input voltage 9 - 60 volts
Operating temperature -40 ° C to + 85 ° C
Beam angle 60° or 40°
Plug integrated DT 2 pin plug
Housing made of aluminum, front pane made of unbreakable polycarbonate
IP protection class waterproof IP68

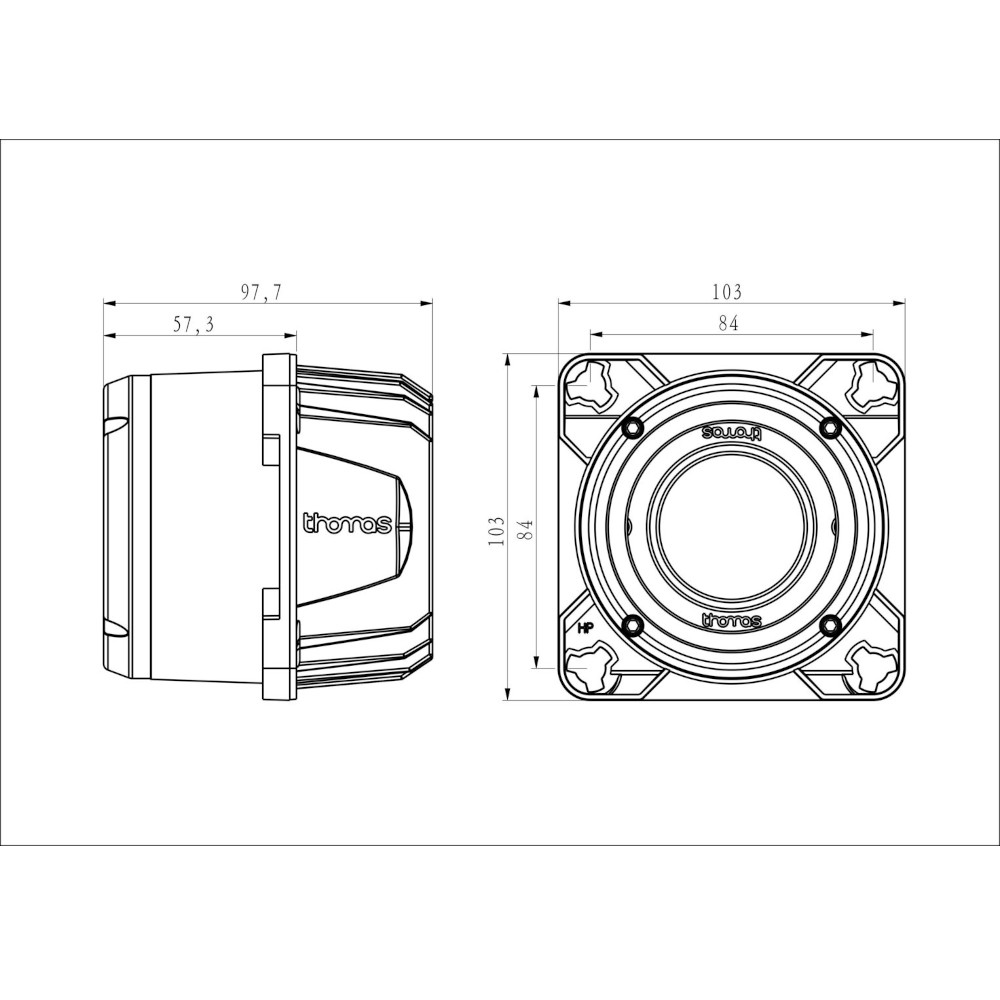

Dimensions 90 x 104 x 88 mm
Weight 0.7 kg
Warranty 2 years

15" cable included

HP1, HP-1, EHP1, EHP-1

EHP-1 Thomas LED - Built in model.

Very powerful light at 2000 effective lumen! 60° flood beam or 40° Trapezoid.

The quality and output of the Thomas brand are among the best in the industry!

This light uses an integrated DT connector - a cable is included that will connect to the light and ends in bare wires for you to add a connector of your choice.

DT to 9005/H9/H11/880 and other cables can be ordered here https://www.larsenlights.com/adapter-cables

Specs :

15" cable included

HP1, HP-1, EHP1, EHP-1

Product tags

trapezoid (14)
,
JD (116)
,
40 degree (11)

Use On Below Models (Click to expand)

Challenger

Tractor: 1038 1042 1046 1050

Fendt

Tractor: 1038 Vario 1042 Vario 1046 Vario 1050 Vario 1151 Vario 1156 Vario 1162 Vario 1167 Vario 310 GEN 4/S4 311 GEN 4/S4 312 GEN 4/S4 313 GEN 4/S4 512 Vario S4 (435) 512 Vario 513 Vario S4 (436) 513 Vario 514 Vario S4 (437) 514 Vario 516 Vario S4 (438) 516 Vario 714 Vario SCR (738) 714 Vario 716 Vario SCR (739) 716 Vario 718 Vario S4 (740) 718 Vario 720 Vario S4 (741) 720 Vario SCR (735) 720 Vario 722 Vario S4 (742) 722 Vario SCR (736) 722 Vario 724 Vario S4 (743) 724 Vario SCR (737) 724 Vario 819 Vario 819 Vario SCR (832) 822 Vario S4 (839) 822 Vario SCR (833) 822 Vario 824 Vario S4 (840) 824 Vario SCR (834) 824 Vario 826 Vario S4 (841) 826 Vario SCR (835) 826 Vario 828 Vario S4 (842) 828 Vario SCR (836) 828 Vario 924 Vario SCR (941) 924 Vario TIER III (941) 927 Vario S4 (950) 927 Vario SCR (942) 927 Vario TIER III (942) 930 Vario (930) 930 Vario S4 (951) 930 Vario SCR (943) 930 Vario TIER III (943) 930 Vario 933 Vario SCR (944) 933 Vario TIER III (944) 933 Vario 936 Vario S4 (953) 936 Vario SCR (945) 936 Vario TIER III (945) 936 Vario 938 Vario MT 939 Vario S4 (954) 939 Vario 940 Vario MT 942 Vario 943 Vario MT

Massey Ferguson

Tractor: 5608 5609 5610 5611 5612 5613 5709 S Dyna-4 5709 S Dyna-6 5709SL 5710 S Dyna-4 5710 S Dyna-6 5710SL 5711 S Dyna-4 5711 S Dyna-6 5711SL 5712 S Dyna-4 5712 S Dyna-6 5712SL 5713 S Dyna-4 5713 S Dyna-6 5713SL 6612 6613 6614 Dyna-VT 6614 Dyna-6 6614 6615 Dyna-4 6615 Dyna-VT 6615 Dyna-6 6615 6616 Dyna-VT 6616 Dyna-6 6616 6712 S Dyna-4 6713 S 6713 S Dyna-4 6713 S Dyna-6 6714 S Dyna-4 6714 S Dyna-6 6714 S Dyna-VT 6715 S Dyna-6 6715 S Dyna-VT 6715S Dyna-4 6715S Dyna-6 T4F 6715S Dyna-VT 6716 S Dyna-6 6716 S Dyna-VT 6716S Dyna-6 T4F 6718 S Dyna-6 6718 S Dyna-VT 7614 7614 Dyna-4 7615 Dyna-VT 7615 Dyna-6 7615 Dyna-4 7615 7616 Dyna-VT 7616 Dyna-6 7616 7618 Dyna-VT 7618 Dyna-6 7618 7619 Dyna-VT 7619 Dyna-6 7619 7620 7620 Dyna-VT 7620 Dyna-6 7622 Dyna-VT 7622 Dyna-6 7622 7624 Dyna-VT 7624 Dyna-6 7624 7626 7714 7714 S Dyna-4 7714S Dyna-4 7715 7715 S Dyna-4 7715 S Dyna-6 7715 S Dyna-VT 7716 Dyna-VT 7716 7716 S Dyna-6 7716 S Dyna-VT 7718 Dyna-VT 7718 7718 S Dyna-6 7718 S Dyna-VT 7719 Dyna-VT 7719 Dyna-6 7719 7719 S Dyna-VT 7720 Dyna-VT 7720 7720 S Dyna-VT 7722 Dyna-VT 7722 Dyna-6 7722 7722 S Dyna-VT 7724 Dyna-6 7724 Dyna-VT 7724 7726 Dyna-VT 7726 Dyna-6 7726 7726 S Dyna-VT 8450 8460 8470 8480 8650 8660 Need part: Hella 9NS152 922-007 adjustment rods for lower grill lights (High and Low beam) 8660 8670 Need part: Hella 9NS152 922-007 adjustment rods for lower grill lights (High and Low beam) 8670 8680 Need part: Hella 9NS152 922-007 adjustment rods for lower grill lights (High and Low beam) 8680 8690 8690 Need part: Hella 9NS152 922-007 adjustment rods for lower grill lights (High and Low beam) 8727 Need part: Hella 9NS152 922-007 adjustment rods for lower grill lights (High and Low beam) 8727 8727 S 8730 Need part: Hella 9NS152 922-007 adjustment rods for lower grill lights (High and Low beam) 8730 8730 S 8732 Need part: Hella 9NS152 922-007 adjustment rods for lower grill lights (High and Low beam) 8732 8732 S 8735 Need part: Hella 9NS152 922-007 adjustment rods for lower grill lights (High and Low beam) 8735 8737 8737 S 8740 8740 S

Existing reviews

Direct Replacement for HID's in a Snowcat

From: Guest Date: 10/11/2025 1:36 PM

You can add these to Fitment list on a Pistenbully 600 Snowcat for the HID's and ballasted OEM's.
They worked out great!

Was this review helpful? Yes No (0/0)
