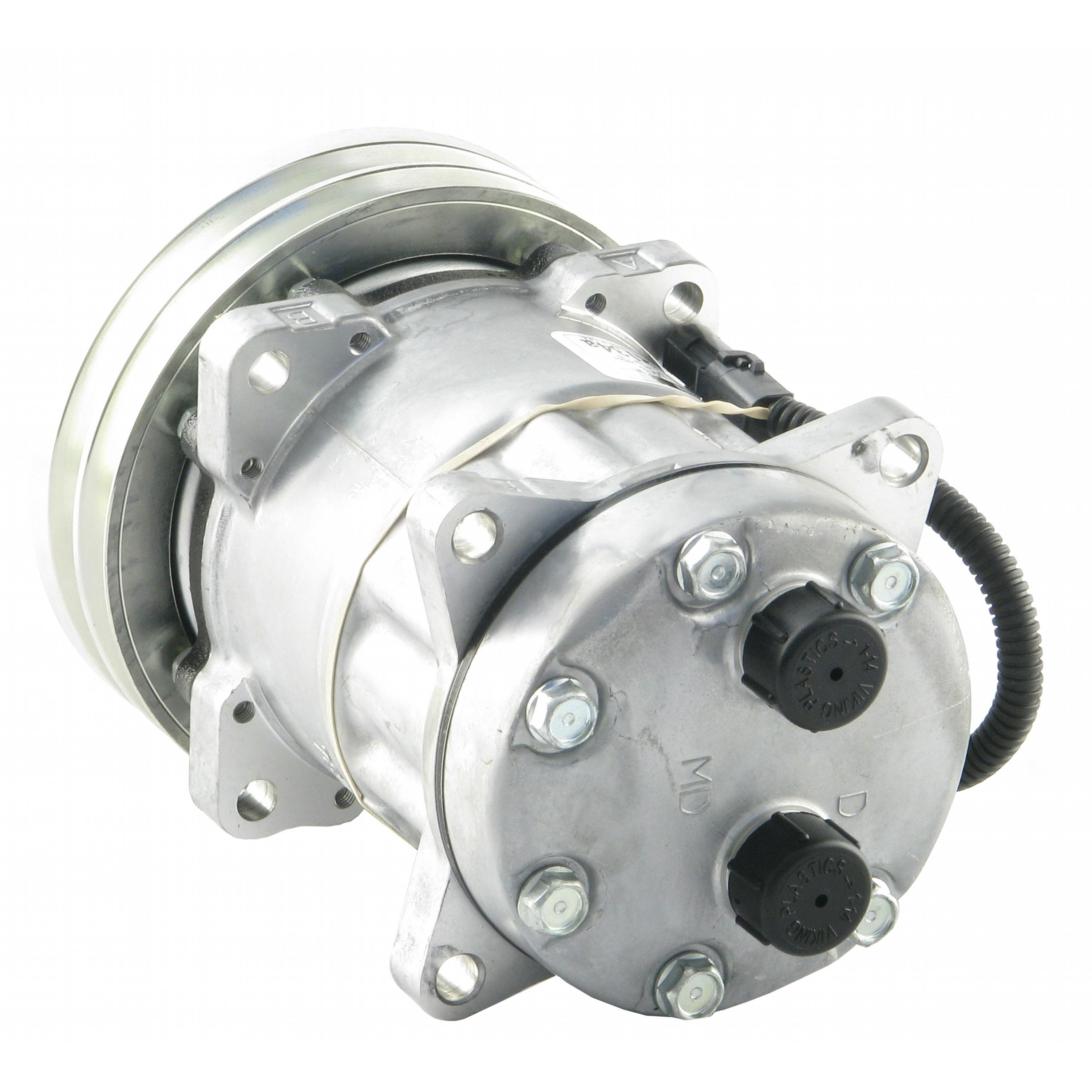

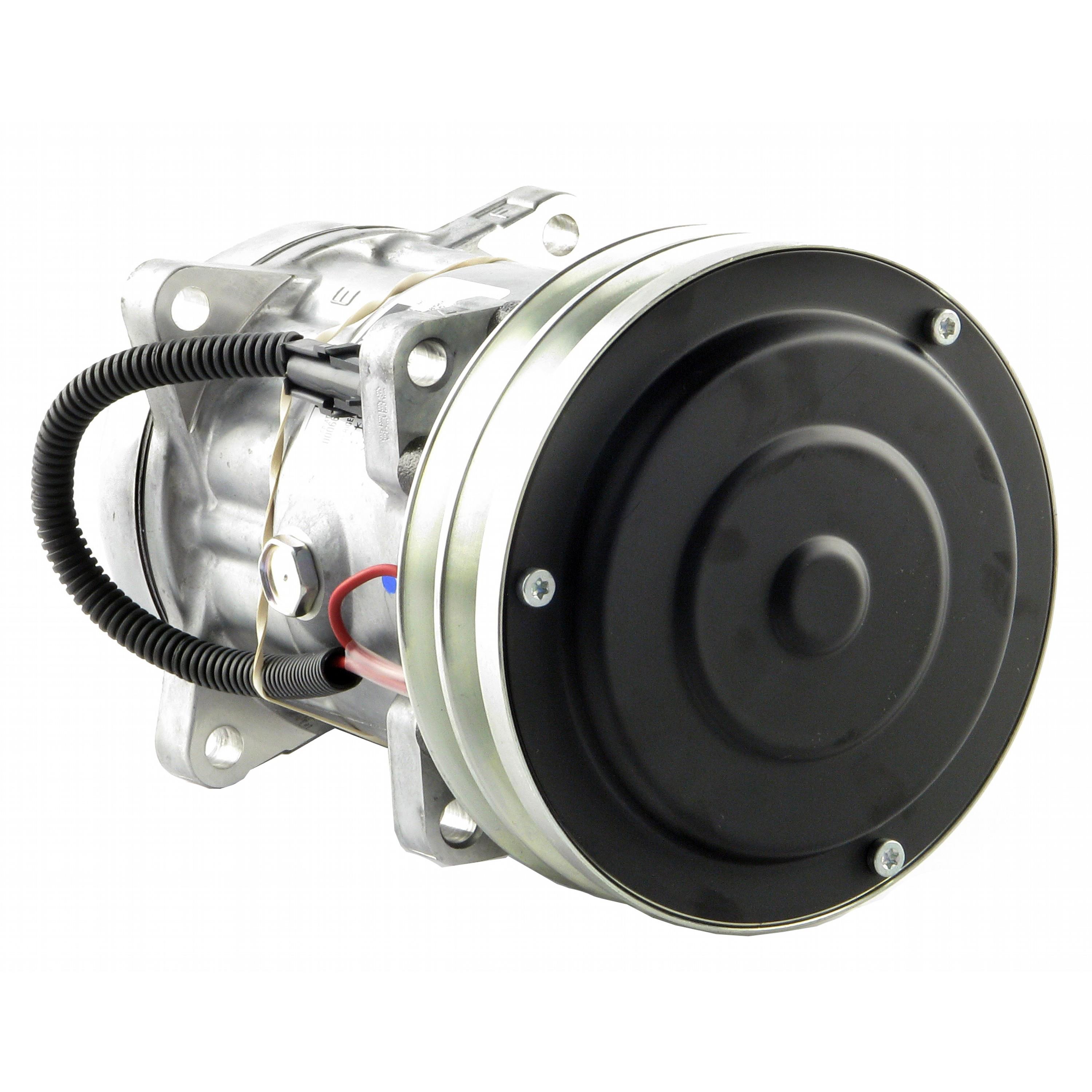

Genuine Sanden SD7H15SHD Compressor, w/ 2 Groove Clutch - New

Be the first to review this product

Genuine Sanden SD7H15 Compressor, w/ 2 Groove Clutch - New

This Sanden Compressor is featured in our blog post, "Make Spraying Season Successful: Spring Maintenance for Sprayers." Read it here.

Manufacturer: Vendor: Hy-Capacity

SKU: 8804478

Availability:

In stock

$390.15

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Compressor Type	Sanden
Compressor Model	SD7H15SHD - 4478; 4609
Cylinder Head	MD
Grooves	2
Clutch Diameter	6.00"
Fittings	Horizontal 1" Tube-O
Mount Type	Ear
Coil Position	12:00
Volts	12V
Oil Type	PAG 100 Oil / SP15 (Pre-Filled 9.6 oz.)
Refrigerant	R134A
New/Reman	New
Quality	Genuine
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Compressor Type	Sanden
Compressor Model	SD7H15SHD - 4478; 4609
Cylinder Head	MD
Grooves	2
Clutch Diameter	6.00"
Fittings	Horizontal 1" Tube-O
Mount Type	Ear
Coil Position	12:00
Volts	12V
Oil Type	PAG 100 Oil / SP15 (Pre-Filled 9.6 oz.)
Refrigerant	R134A
New/Reman	New
Quality	Genuine
Sold As	Each
Warranty	1 Year

Product tags

Use On Below Models (Click to expand)

AGCO

Windrower: 9330 9340 9345 9365 9435 9635

Case

Backhoe: 570LXT 570LXT Series II 570MXT 580 Super K 580L Tier II 580M 580SL Tier II 580SM 590 Turbo 590L 590SL 590SL Series II 590SM 680L 780D

Crawler/Dozer: 1150E 1150G 1150H 1150K 1155E 1650L 650G 650H 650K 650L 750K 750L 850E 850G 850H 850K 850L

Skid Steer Loader: 85XT 90XT 95XT

Wheel Loader: 621 621B 621C 621D 721 721B 721C 821 821B Start S/N JEE0040380 821C 921 921B 921C 921E

Case IH

Combine: 1620 Eff. PIN # JJC0032630 1622 Eff. PIN # JJC0032630 1640 Eff. PIN # JJC0034705 1644 1660 Eff. PIN # JJC0038346 1666 1670 Hillside Eff. PIN # JJC0080540 1680 Eff. PIN # JJC0045689 1682 Eff. PIN # JJC0045689 1688 2144 2166 2188 2344 2366 2377 2388 2577 2588 5088 5130 5130 Tier 4 5140 5150 Tier 3, 4B 6088 7088

COMBINE: 5140 Tier 4, 4B

Cotton Harvester: 1800

Cotton Picker: 1822 1844 2022 2044 2055 2155 2555 420 620 625 CPX420 CPX610 CPX620

Floater: FLX3010 FLX3300B FLX3330B w/ Case Engine FLX3510 FLX4010 FLX4300 09/02 - 06/03 FLX4375 09/02 - 06/03 FLX4510

FLOATER: FLX3300B w/ Cummins Engine

Sprayer: 3020 Titan 3150 Patriot 3185 Patriot 3210 Patriot 3520 Titan 4020 Titan 4420 Patriot 4520 Titan SPX3150 Patriot SPX3185 Patriot SPX3200 SPX3200 Patriot SPX3200B Patriot SPX3310 SPX3310 Patriot SPX4260 Patriot SPX4260 Patriot 4260 >11-2001 - otherwise use LED-1202 SPX4410

Tractor: 1056XL 1255XL 1455XL 180 Magnum 190 Magnum 200 Magnum 210 Magnum 220 Magnum 225 Magnum 240 Magnum 3220 3230 4210 4230 4240 5120 5130 5140 5150 5220 5230 5240 5250 585 595 685 695 7110 7120 7130 7140 7150 7210 7220 7230 7240 7250 795XL 885 8910 8920 8930 8940 895 8950 895XL 9210 Eff. S/N JEE0031850 9230 Eff. S/N JEE0031850 9240 Eff. S/N JEE0031850 9250 Eff. S/N JEE0031850 9260 Eff. S/N JEE0031850 9270 Eff. S/N JEE0031850 9280 Eff. S/N JEE0031850 9310 9330 9350 9370 9380 9390 956XL 995 995XL C100 C80 C90 CS100 CS110 CS120 CS130 CS150 CS78 CS94 CVX1135 CVX1145 CVX1155 CVX1170 CVX1190 CVX1195 CX100 CX50 CX60 CX70 CX80 CX90 MX100 MX100C MX110 MX120 MX135 MX150 MX170 MX180 MX200 MX220 MX240 MX270 MX80C MX90C STX275 STX280 S/N Z6F100023 - Z6F105001 STX325 STX330 S/N Z6F100023 - Z6F105001

Windrower: 8820 R134A Sanden Compressor & 6" Clutch 8825 8825HP 8830 R134A Sanden Compressor & 6" Clutch 8840 R134A Sanden Compressor & 6" Clutch, Eff. S/N CFH0086315 8850 8860 8860HP 8870 8880 8880HP

Challenger

Windrower: SP110 SP115B SP115C SP165 SP185B SP185C SP80 SP85B

Hesston-Fiat

Windrower: 8110 8200 Optional 134a Genuine Sanden For 8819571 8250 8250S 8400 Option 134a Genuine Sanden For 8819571 8450 8500 8550 8550S 9230 9240 9260 9265

Massey Ferguson

Swather: 220 Eff. S/N 220431, Series II Models

Windrower: 220 XL 5140 9220 9225 9420 9425 9430 9435 9635 WR9725

McCormick

Tractor: C70 CVX120 CVX130 CVX150 CVX170 CX100 CX105 CX110 CX140 CX50 CX60 CX70 CX75 CX80 CX85 CX90 CX95 MC100 MC105 MC115 MC120 MC125 MC130 MC135 MC80 MC90 MC95 MTX110 MTX125 MTX140 MTX155 MTX175 MTX200 X60.20 X60.30 X60.40 X60.50 XTX215 ZTX230 ZTX260 ZTX280

New Holland

Crawler/Dozer: D75 D75B D85 D85B D95 D95B

Tractor: T9010 T9020 TJ275 TJ280 TJ325 TJ330

Tractor Loader Backhoe: LV80 U80

Wheel Loader: LW110.B LW130.B W110TC

New Idea

Windrower: 5830 5830X 5840 5850

Steiger

Tractor: 280 330 335
