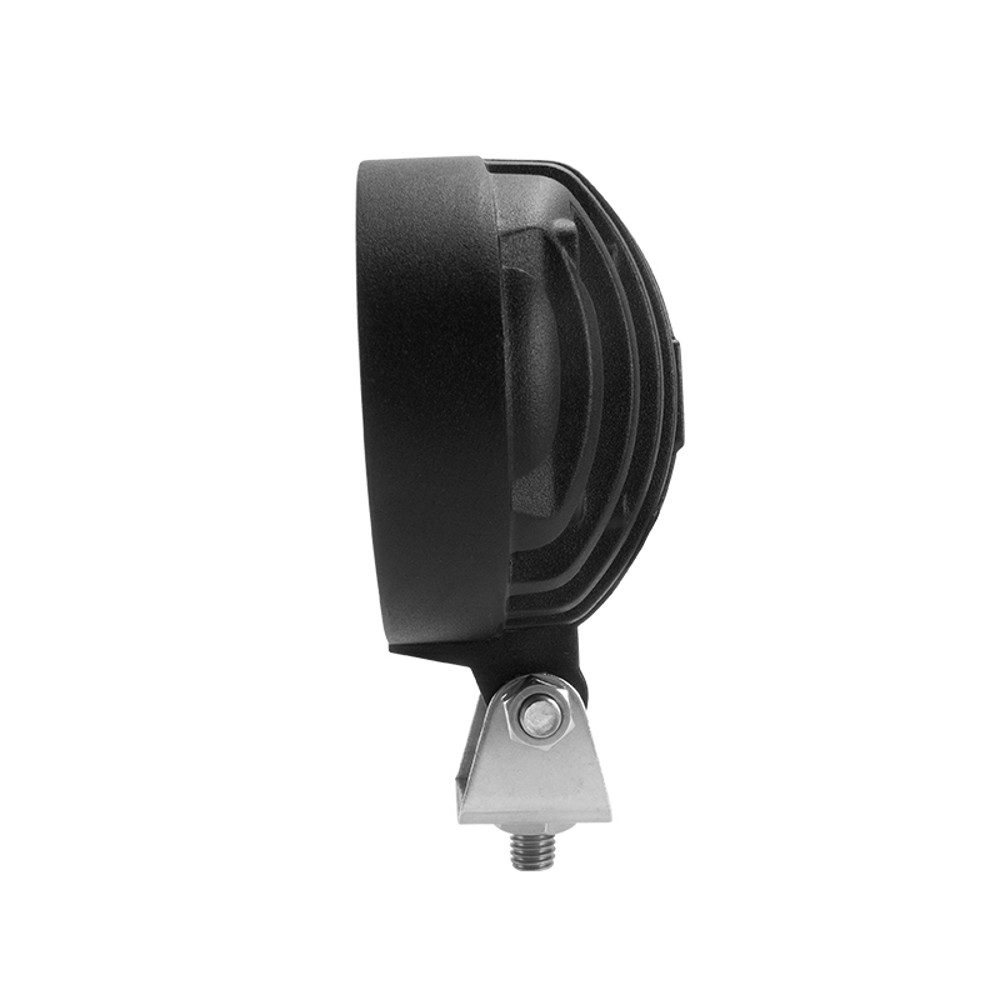

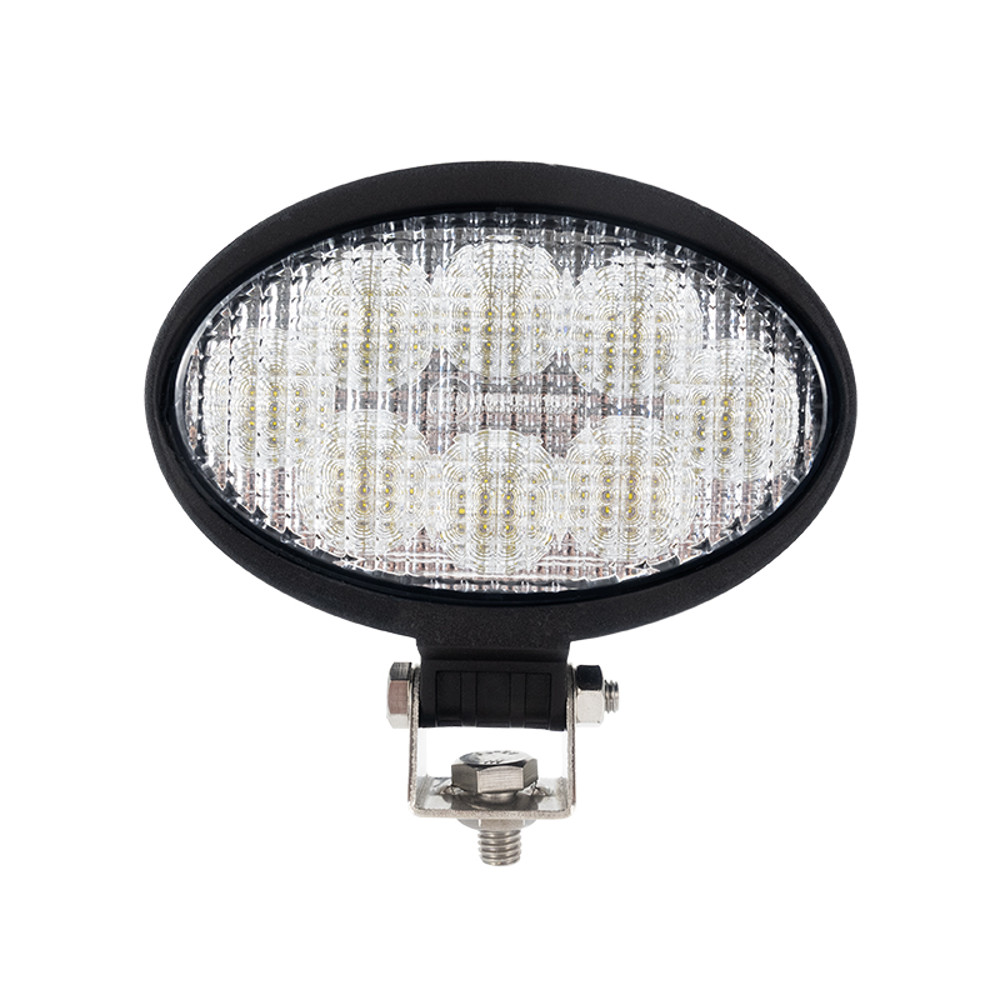

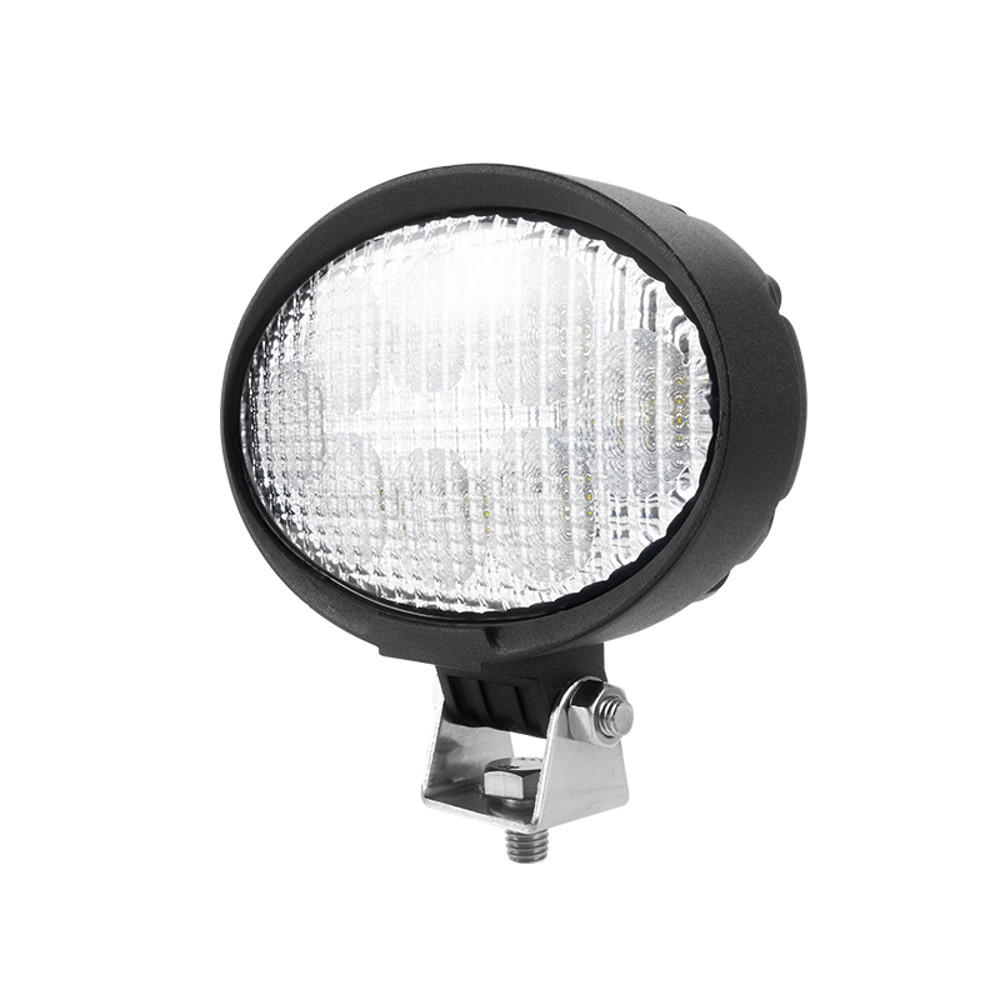

LED-4024-40W

Be the first to review this product
LED-4024-40W - light for combine grain tank / rear / under shields and much more. Do not use for stubble and rear lights on JD combines - computer issues. Use LED-765 instead.
Manufacturer: Larsen Lights
SKU: LL0651
179 in stock
$39.00
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

LED-4024-40W

This light is an excellent light for many applications, but it works well on combines as, under shields, work lights.

Do not use for stubble and rear lights on JD combines - computer issues. Use LED-765 instead.

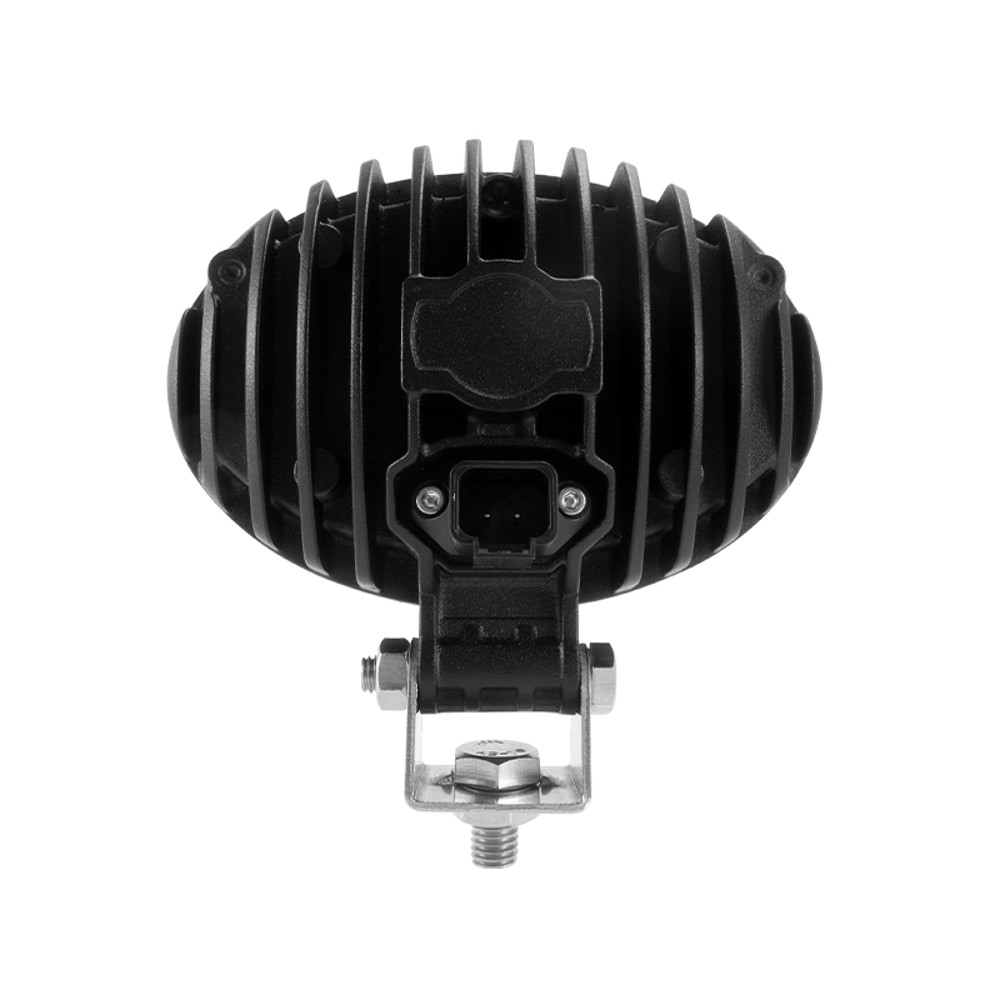

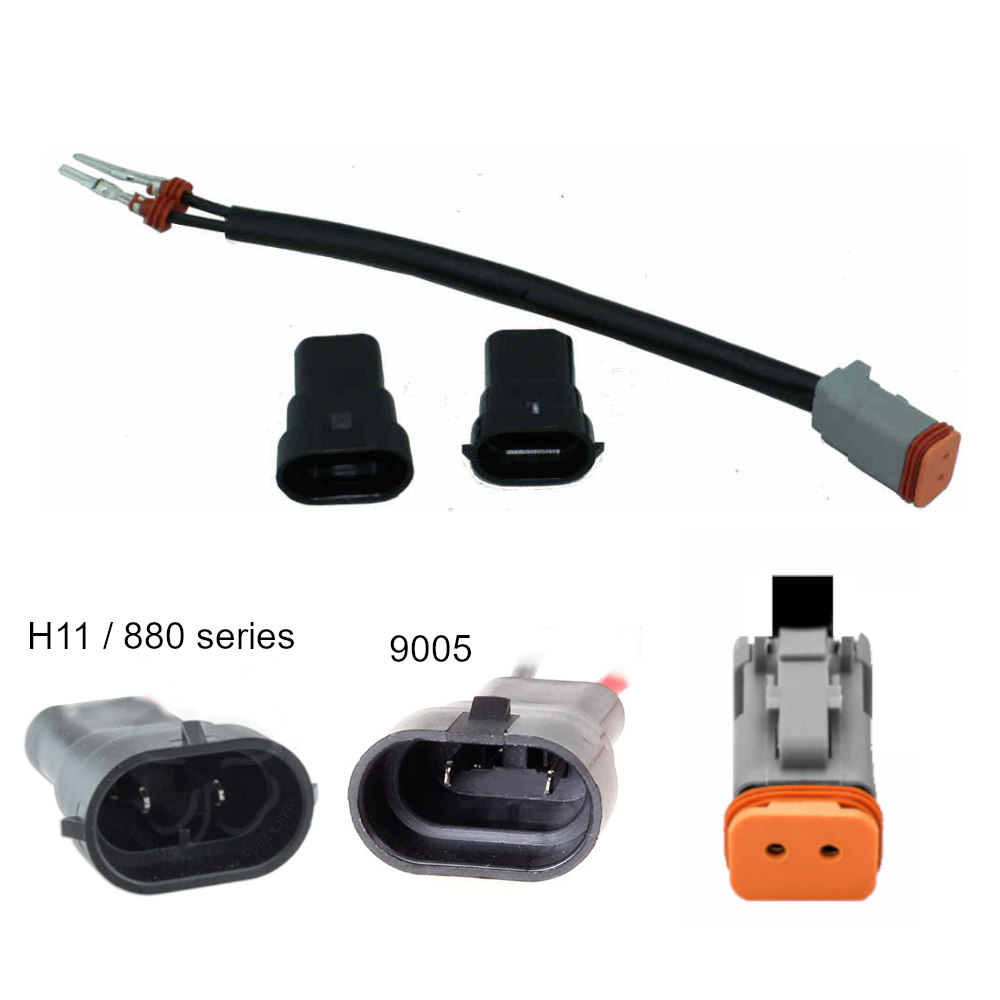

Built-in DT connector, adapter wire included for use with 9005 & H11/885/886 bulb connectors.



  • LED Power: 40 Watt Cree LED, 5W/PC x 8
  • Operating Volt: 10-30 Volt DC
  • Amp draw  2.6 amp @ 12 v= 31 watt
  • Light Output: about 3200 Lumen
  • Color Temperature: 5500K
  • Operation Temperature: -40℃~80℃
  • Waterproof Rate: IP68
  • Beam: flood beam
  • Material: diecast aluminum housing, stainless steel bracket
  • LENS: PC, diffused lens
  • Housing Color: black
  • Life Time: about 50,000 hours
  • EMC: ECE R10, CISPR25 CLASS 4

LED4024

LED-4024-40W

This light is an excellent light for many applications, but it works well on combines as, under shields, work lights.

Do not use for stubble and rear lights on JD combines - computer issues. Use LED-765 instead.

Built-in DT connector, adapter wire included for use with 9005 & H11/885/886 bulb connectors.



  • LED Power: 40 Watt Cree LED, 5W/PC x 8
  • Operating Volt: 10-30 Volt DC
  • Amp draw  2.6 amp @ 12 v= 31 watt
  • Light Output: about 3200 Lumen
  • Color Temperature: 5500K
  • Operation Temperature: -40℃~80℃
  • Waterproof Rate: IP68
  • Beam: flood beam
  • Material: diecast aluminum housing, stainless steel bracket
  • LENS: PC, diffused lens
  • Housing Color: black
  • Life Time: about 50,000 hours
  • EMC: ECE R10, CISPR25 CLASS 4

LED4024
