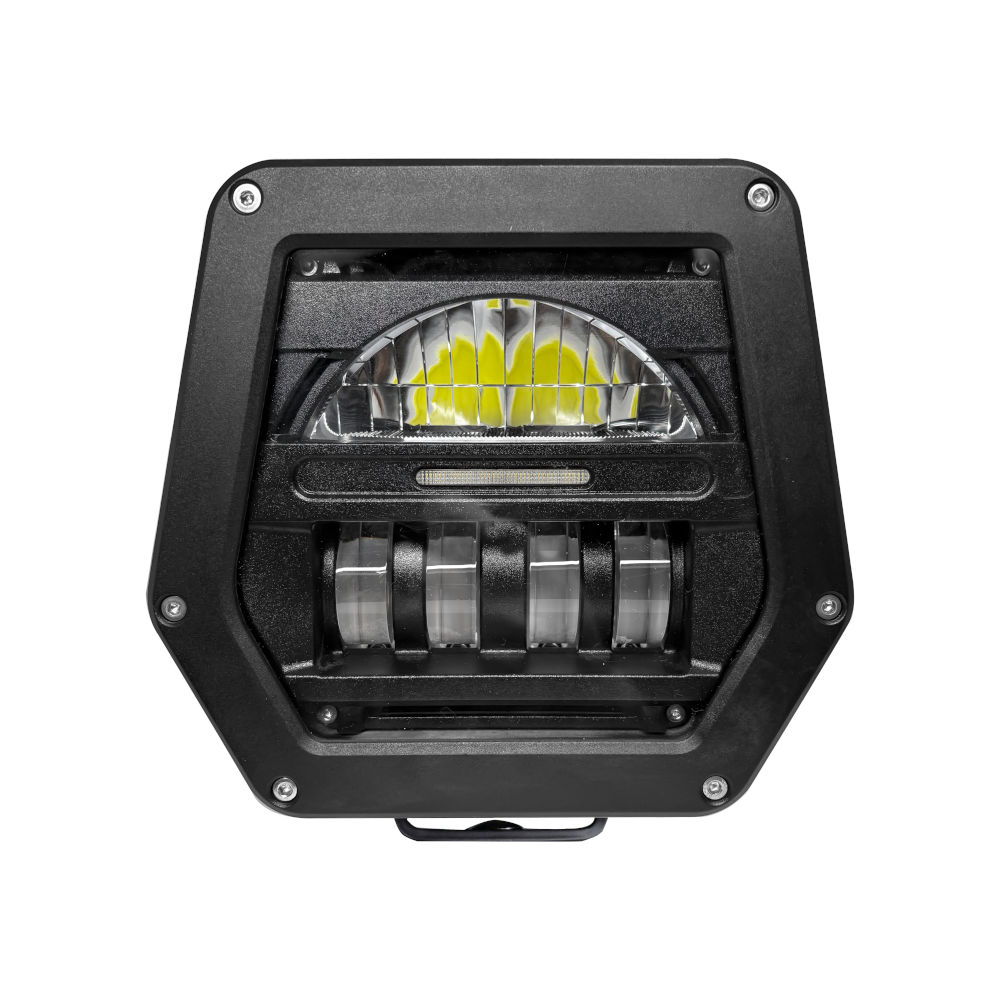

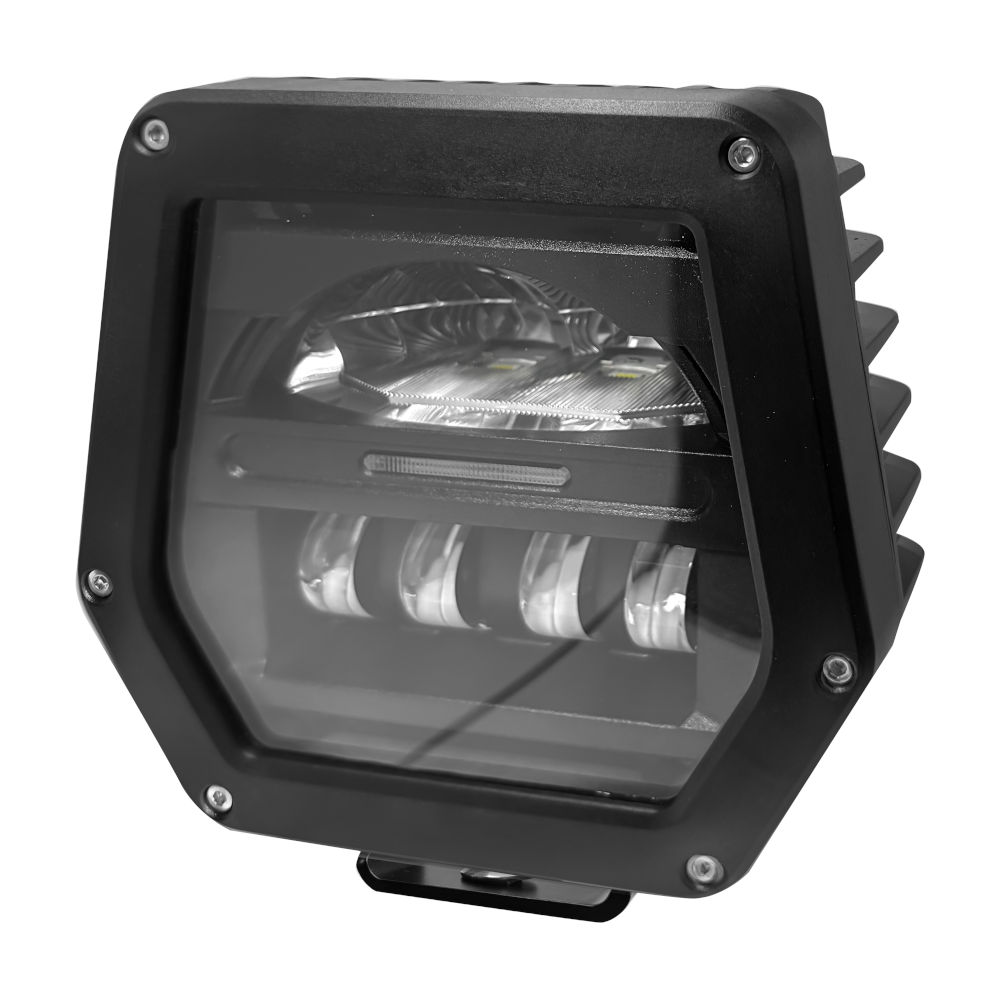

LED-7821 Hi-Lo

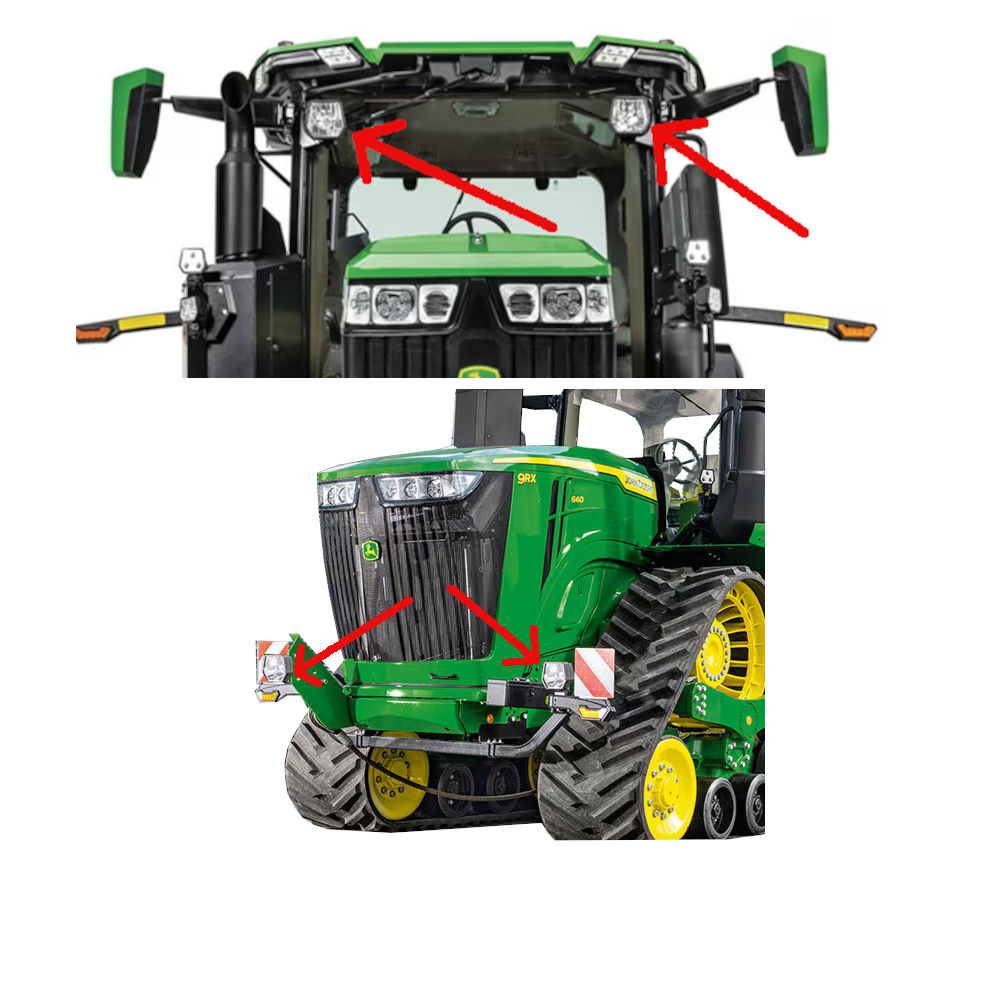

LED-7821 Hi-Lo is a light that matches the OEM lights on some JD R tractors.

Replaces OEM# RE593798

Power (Theoretical): - Low Beam: 40W

High & Low Beam: 70W- Position Light: 3W(0.5Wx 6 LED) Actual Power Consumption: - Low Beam: 35W

High & Low : 55W- Position Light: 2.5WWhite/Amber Raw/Effective Lumen: - Low Beam: 3840 / 1600 lm- High & Low: 6000 / 3600 lmDual-color Position Light: White/Amber Voltage: DC10-30V Waterproof: IP69K

EMC: CISPR 25 Class 3 Operation Temp.: -40°C ~ +80°C

Housing: Die-cast AluminumFront Cover:

Polycarbonate Bezel: Matt-black Optics: Polycarbonate (L) / PMMA (H), Hard-coated Lens

Connector: External Delphi 12129615 Socket, Separate Wires for Position Mount: Pedestal, M10x30,

Steel Hardware w/ Anti- corrosion Coating (Black)

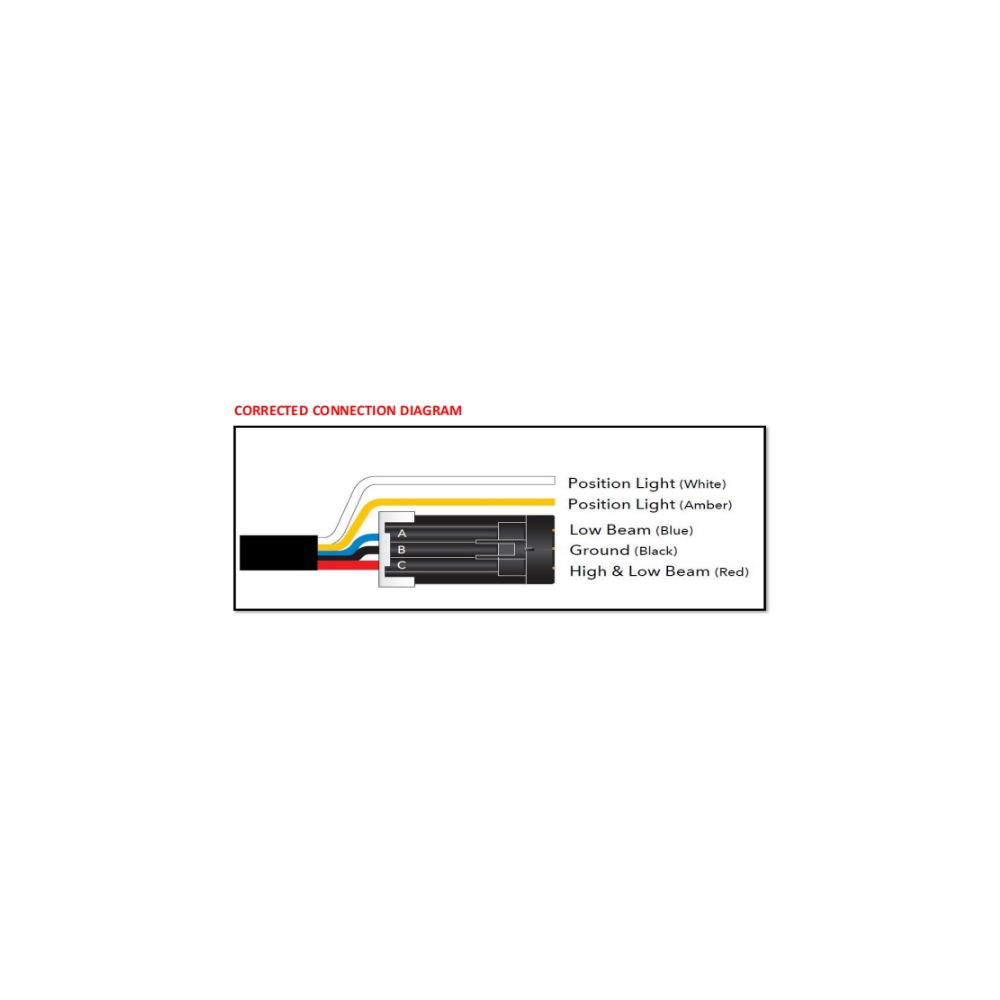

Wiring: Black: Ground Blue: Low Beam. Red: High/Low Beam, White: Position Light, 6000K Yellow: Position Light, Amber

Certification: ECE R149 for HB & LB, LB is R149 Class DS, Symmetrical LowBeamECE R148 for Position Light (White only) ECE R10, CE, UKCA, RoHS, REACH

OEM Reference: RE593798

LED-7821 Hi-Lo

LED-7821 Hi-Lo is a light that matches the OEM lights on some JD R tractors.

Replaces OEM# RE593798

Power (Theoretical): - Low Beam: 40W

High & Low Beam: 70W- Position Light: 3W(0.5Wx 6 LED) Actual Power Consumption: - Low Beam: 35W

High & Low : 55W- Position Light: 2.5WWhite/Amber Raw/Effective Lumen: - Low Beam: 3840 / 1600 lm- High & Low: 6000 / 3600 lmDual-color Position Light: White/Amber Voltage: DC10-30V Waterproof: IP69K

EMC: CISPR 25 Class 3 Operation Temp.: -40°C ~ +80°C

Housing: Die-cast AluminumFront Cover:

Polycarbonate Bezel: Matt-black Optics: Polycarbonate (L) / PMMA (H), Hard-coated Lens

Connector: External Delphi 12129615 Socket, Separate Wires for Position Mount: Pedestal, M10x30,

Steel Hardware w/ Anti- corrosion Coating (Black)

Wiring: Black: Ground Blue: Low Beam. Red: High/Low Beam, White: Position Light, 6000K Yellow: Position Light, Amber

Certification: ECE R149 for HB & LB, LB is R149 Class DS, Symmetrical LowBeamECE R148 for Position Light (White only) ECE R10, CE, UKCA, RoHS, REACH

OEM Reference: RE593798
