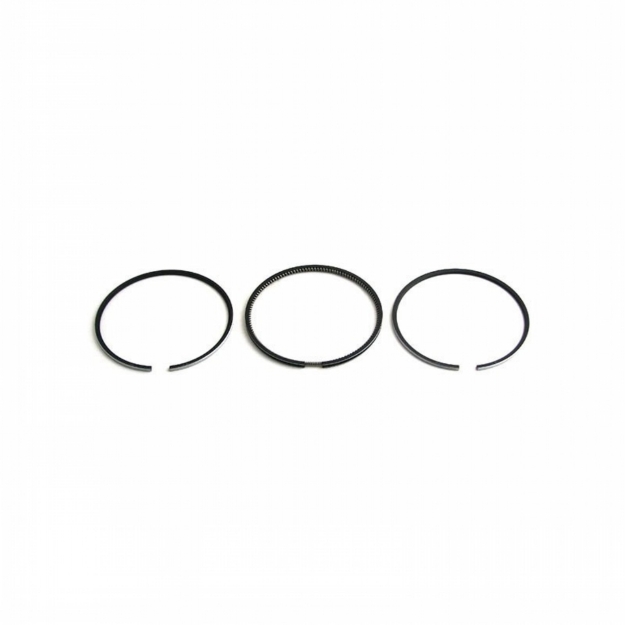

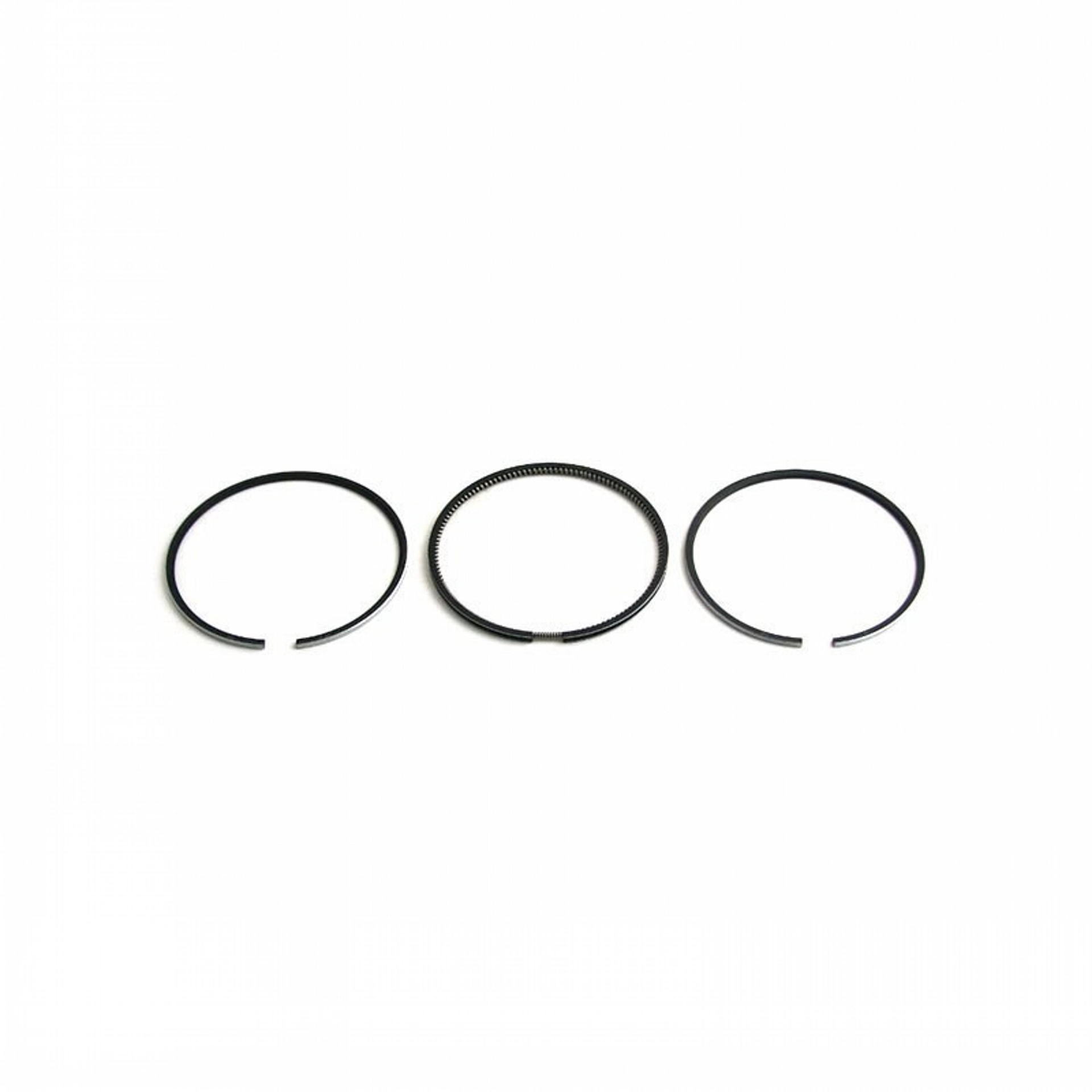

Piston Ring Set, 2-3/32, 1-3/16, 4.625" bore, 1 cylinder set

Be the first to review this product

-

Manufacturer: Vendor: Hy-Capacity

SKU: HCR5A48320

Availability:

In stock

$22.79

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Bore	4.625"
New/Reman	New
Ring Thickness	1)3/16", 2)3/32", 1)3/16", 2)3/32"
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Bore	4.625"
New/Reman	New
Ring Thickness	1)3/16", 2)3/32", 1)3/16", 2)3/32"
Sold As	Each
Warranty	1 Year

Product tags

84349226 (1)
,
A48320 (1)
,
5A48320 (1)

Use On Below Models (Click to expand)

Case

BACKHOE: 680E Case 336BD, 336BDT Diesel 680G Case 336BD, 336BDT Diesel 680H Case 336BD, 336BDT Diesel, 5.192" fire dam, 1.625" piston pin, rectangular compression rings

CRAWLER/DOZER: 1150D Case 504BD, 504BDT Diesel, 5.192" fire dam, 1.625" piston pin, rectangular compression rings 1155D Case 504BD, 504BDT Diesel, 5.192" fire dam, 1.625" piston pin, rectangular compression rings 850B Case 336BD, 336BDT Diesel 850C Case 336BD, 336BDT Diesel, 5.192" fire dam, 1.625" piston pin, rectangular compression rings 855C Case 336BD, 336BDT Diesel, 5.192" fire dam, 1.625" piston pin, rectangular compression rings

EXCAVATOR: 880C Case 504BD, 504BDT Diesel, 5.192" fire dam, 1.625" piston pin, rectangular compression rings

POWER UNIT: 504D Case 504BD, 504BDT Diesel, 5.094" fire dam, 1.625" piston pin, rectangular compression rings

TRACTOR: 2090 Case 504BD, 504BDT Diesel, 5.192" fire dam, 1.625" piston pin, rectangular compression rings 2094 Case 504BD, 504BDT Diesel, 5.192" fire dam, 1.625" piston pin, rectangular compression rings

TRENCHER: 475 Case 336BD, 336BDT Diesel

WHEEL LOADER: W14 Case 336BD, 336BDT Diesel W14FL Case 336BD, 336BDT Diesel W14H Case 336BD, 336BDT Diesel W18B Case 504BD, 504BDT Diesel, 5.192" fire dam, 1.625" piston pin, rectangular compression rings W20C Case 504BD, 504BDT Diesel, 5.192" fire dam, 1.625" piston pin, rectangular compression rings W24B Case 504BD, 504BDT Diesel W24C Case 504BD, 504BDT Diesel
