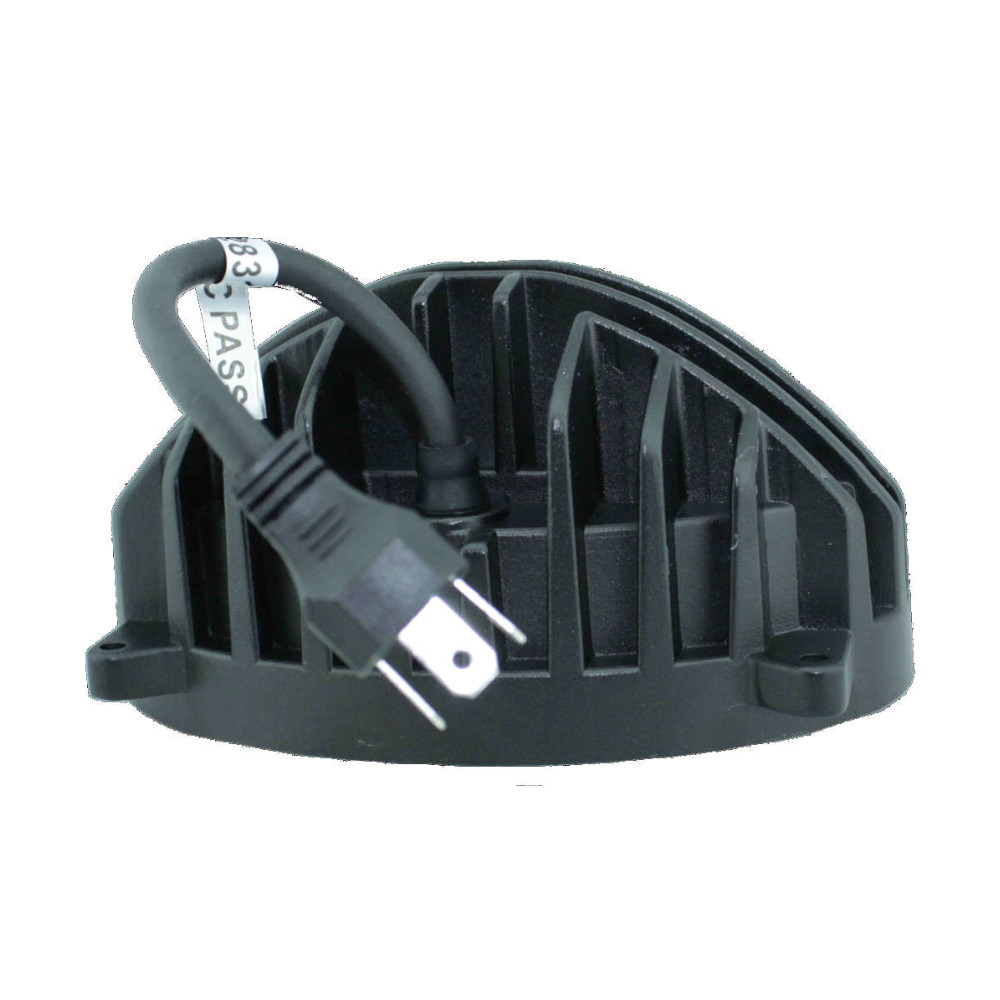

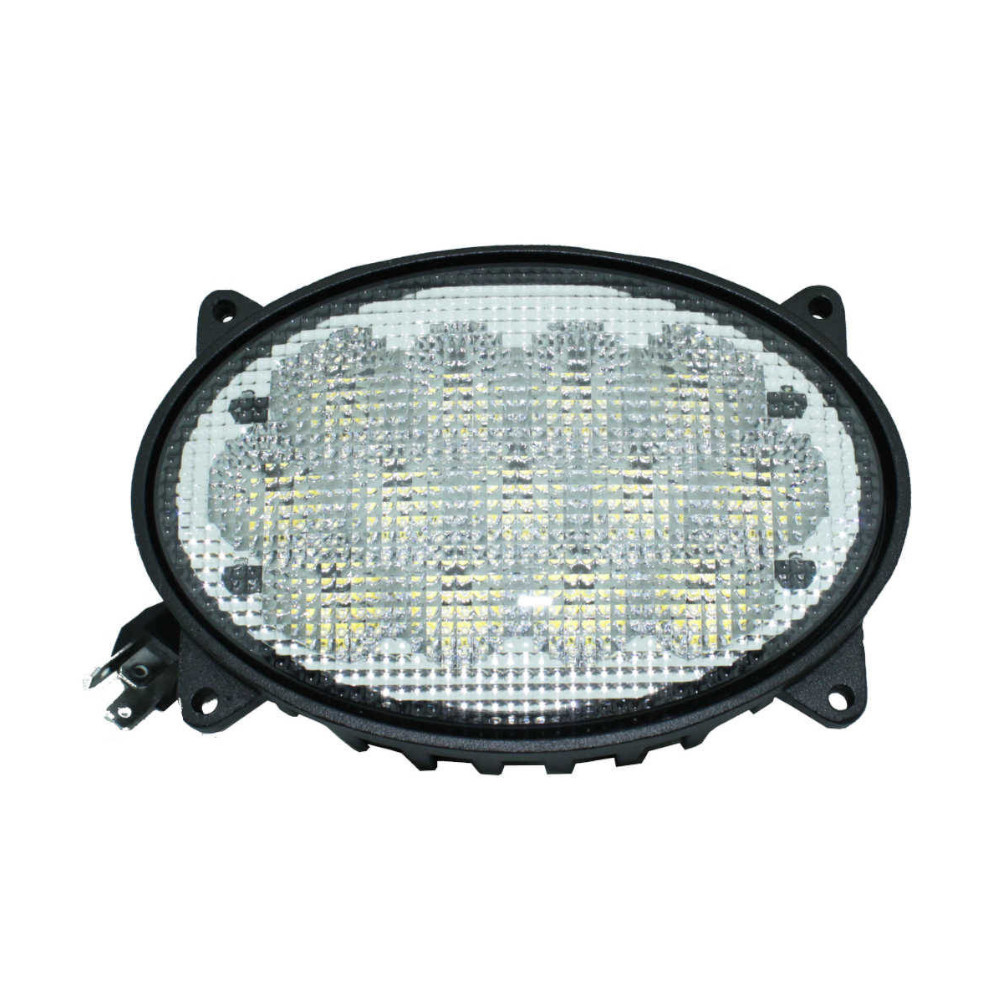

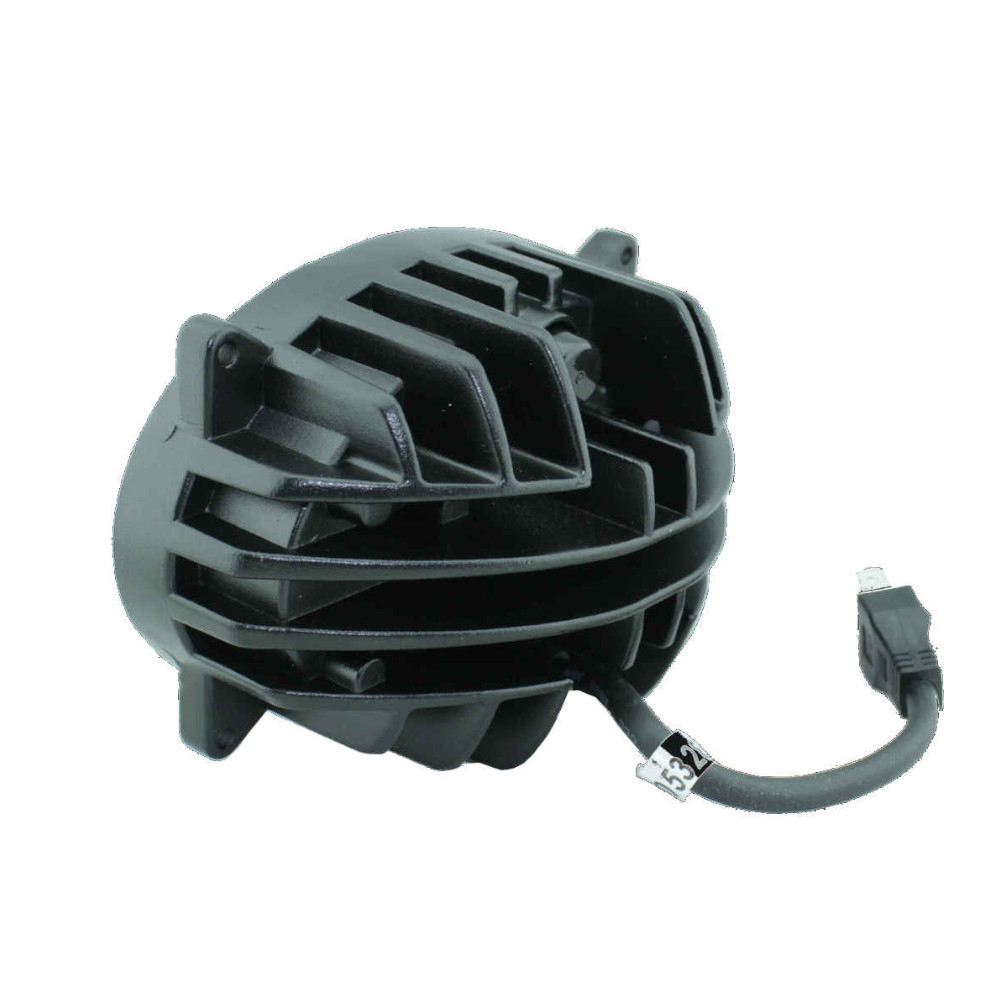

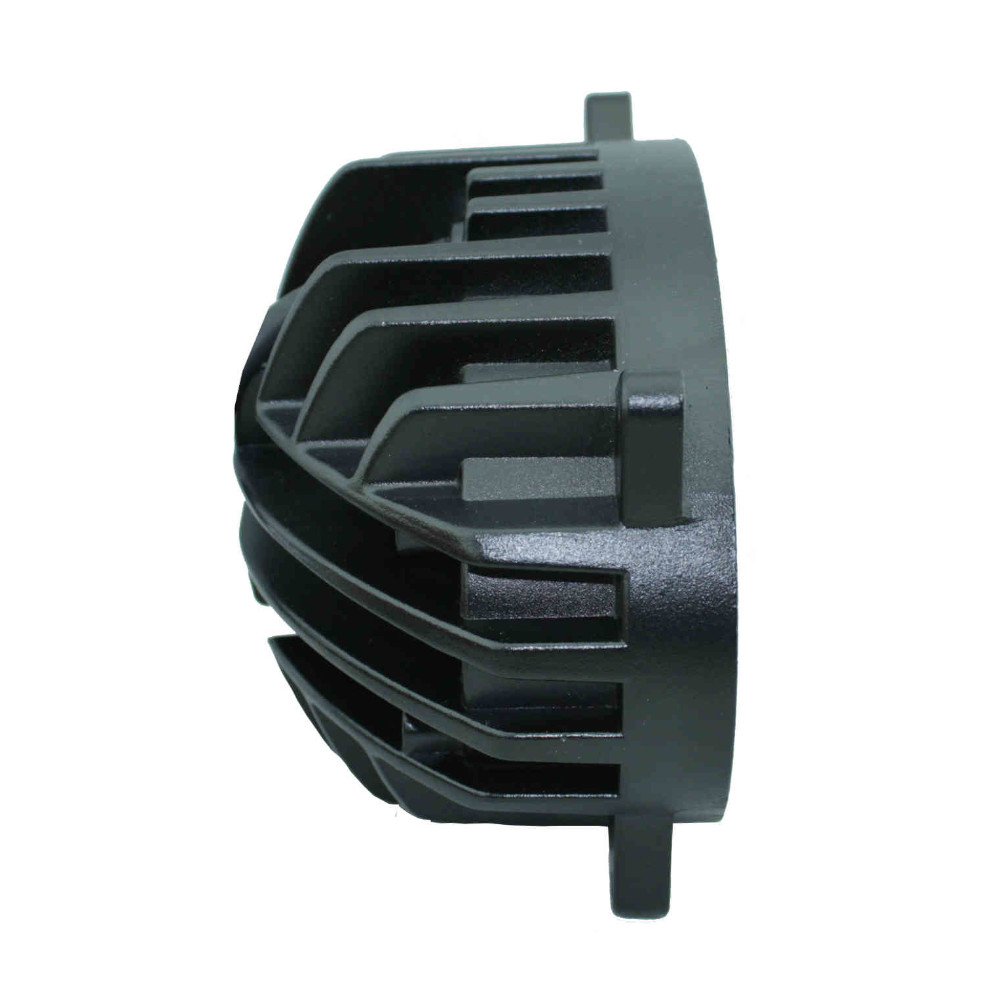

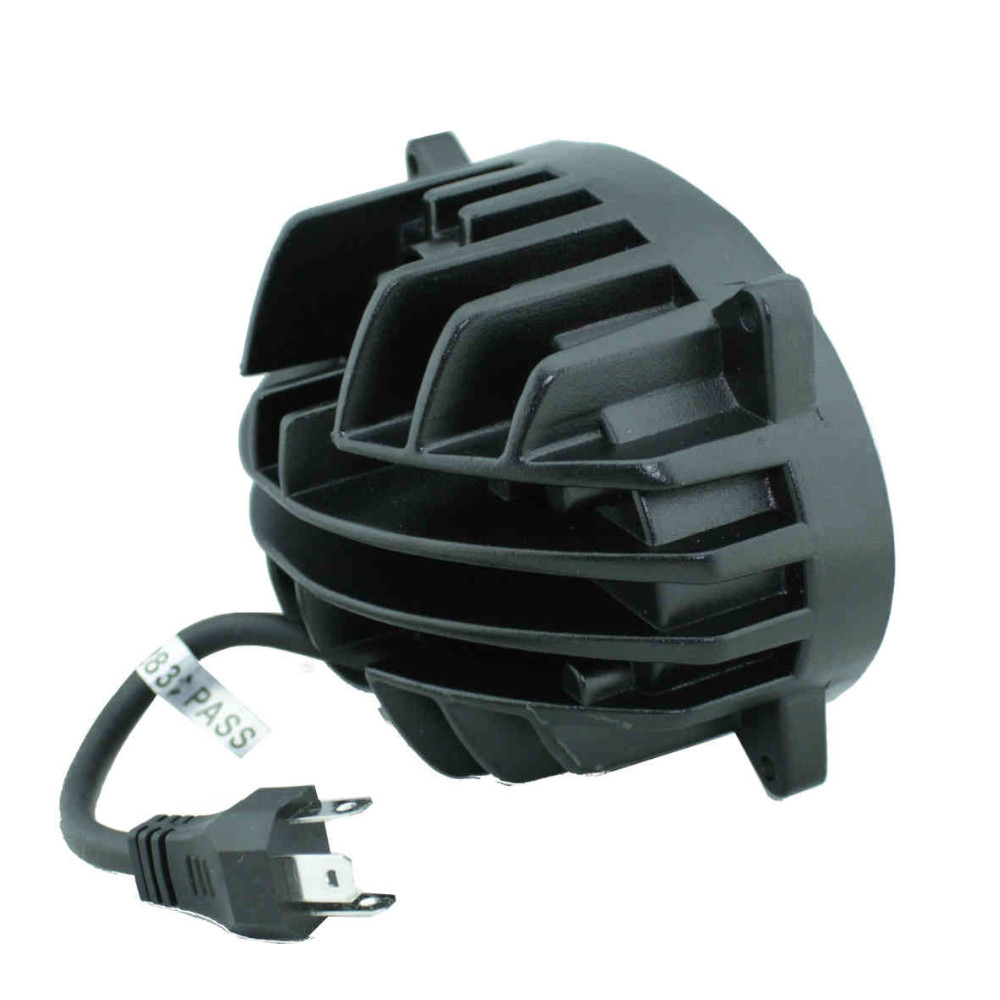

LED-652 Hi-Lo

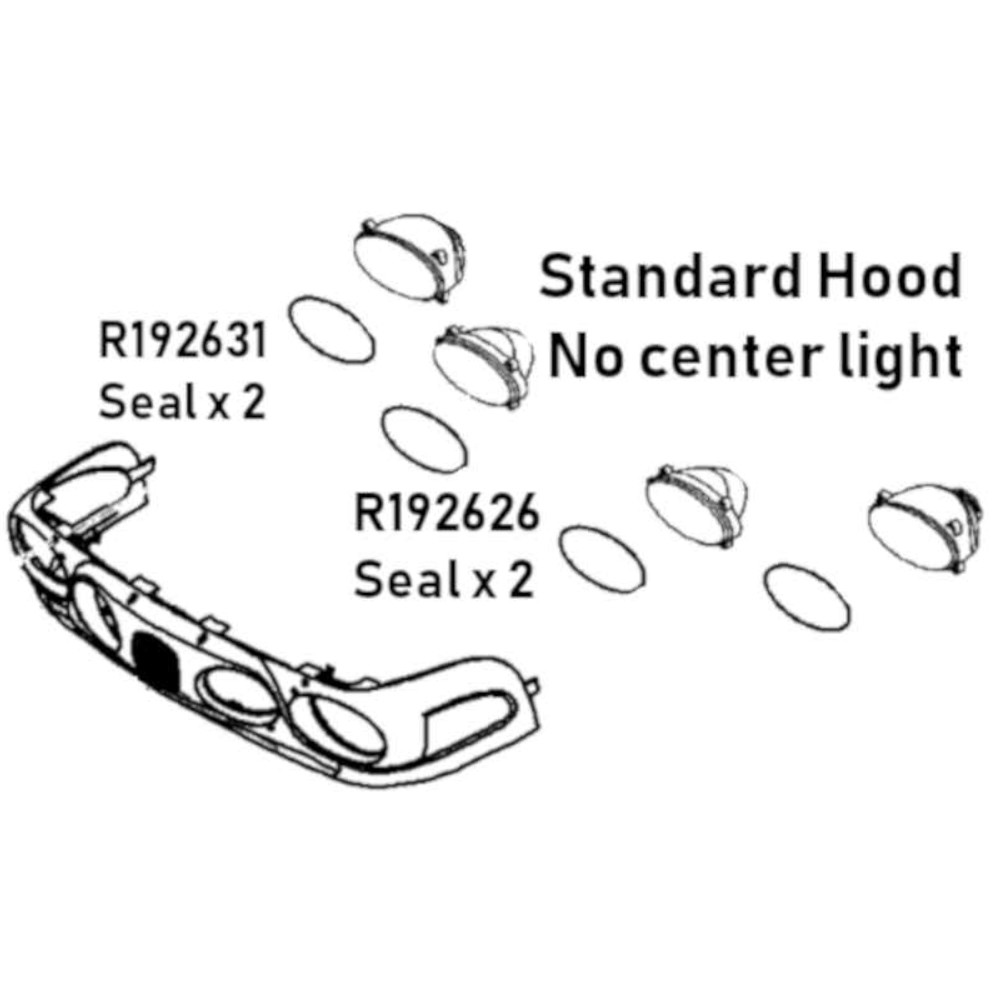

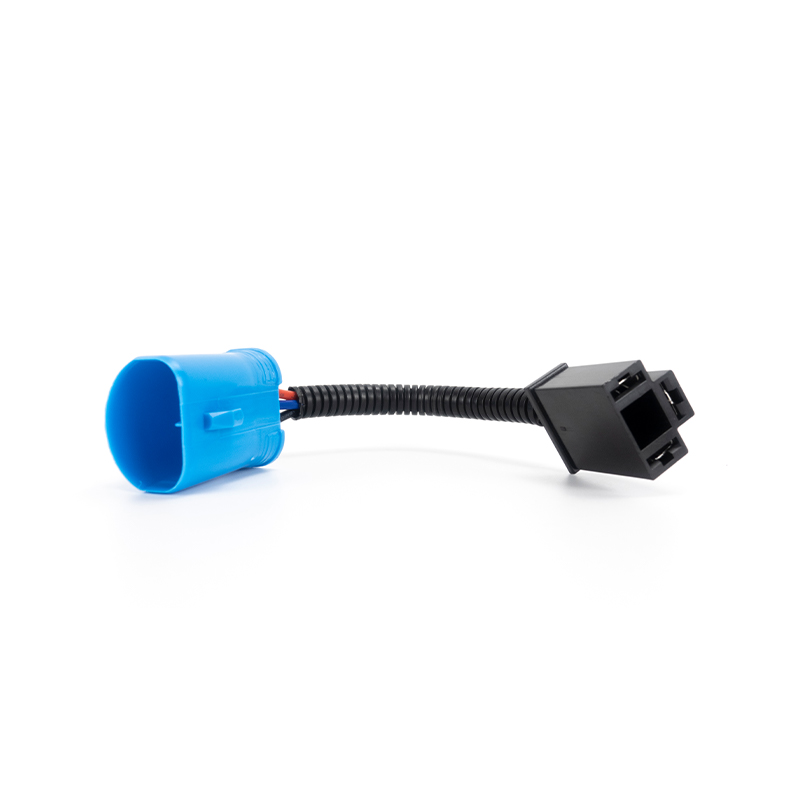

LED-652 Hi-Lo LED-652 Hi-Lo LED-652 Hi-Lo LED-652 Hi-Lo LED-652 Hi-Lo Adaptor H4 to 9004 LED-652 Hi-Lo Placement

LED-652

Be the first to review this product
An oval LED-652 Hi-Lo or Flood LED light for some JD tractors and CaseIH combines. The Hi-Lo model fits in the hood on many newer JD tractors, and both the Hi-Lo and the Flood light fit some newer CIH combines. Replaces Case IH® Part Numbers: 87106352, 87106354. Replaces John Deere® Part Numbers: RE260102, RE173600.
Manufacturer: Larsen Lights
LED-652 Hi-Lo
LED-652 Hi-Lo
An oval LED-652 Hi-Lo LED light for some JD tractors and CaseIH combines. Fits in the hood on many newer JD tractors and some newer CIH combines. Replaces Case IH® Part Numbers: 87106352, 87106354. Replaces John Deere® Part Numbers: RE260102, RE173600.
SKU: LL0412
46 in stock
$32.00
+ -

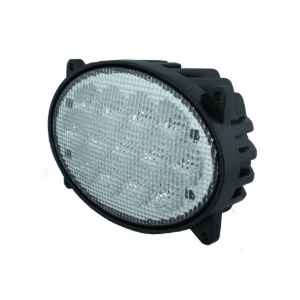

LED-652 flood
LED-652 Wide Flood XL
An oval LED-652 Wide Flood LED light for CaseIH combines and more. Replaces Case IH® Part Numbers: 87106353, 87106354
SKU: LL0497
141 in stock
$30.00
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

LED-652



The Hi-Lo model fits in the hood on many newer JD tractors, and both the Hi-Lo and the Flood light fit some newer CIH combines.



Specs:

  • Operating Voltage: 10-30V DC
  • Waterproof rate: IP67
  • 5W*13 USA CREE LEDs
  • Amp use : 4.2 @ 12V = 50 watt
  • Lumen: Raw 5850lm, Effective 4600.
  • Color temperature: 5000K
  • Material: Die cast aluminum housing
  • Lens material: Scratch-resistant PC
  • Hi/Lo beam


LED652, Hi-Lo, TL8520, LED-6060, LED6060

LED-652



The Hi-Lo model fits in the hood on many newer JD tractors, and both the Hi-Lo and the Flood light fit some newer CIH combines.



Specs:

  • Operating Voltage: 10-30V DC
  • Waterproof rate: IP67
  • 5W*13 USA CREE LEDs
  • Amp use : 4.2 @ 12V = 50 watt
  • Lumen: Raw 5850lm, Effective 4600.
  • Color temperature: 5000K
  • Material: Die cast aluminum housing
  • Lens material: Scratch-resistant PC
  • Hi/Lo beam


LED652, Hi-Lo, TL8520, LED-6060, LED6060

Product tags

Use On Below Models (Click to expand)
Case IH
Combine
5088 5130 Tier 4, Eff. Yrs. 3/12-1/13 w/o Common Cab 6088 6130 Tier 4, Eff. Yrs. 3/12-1/13 w/o Common Cab 7010 7088 7120 7130 Tier 4, Eff. Yrs. 3/12-1/13 w/o Common Cab 7230 8010 8120 8230 Tier 4, Eff. Yrs. 3/12-1/13 w/o Common Cab 9010 9120 9230 Tier 4, Eff. Yrs. 3/12-1/13 w/o Common Cab
Cotton Picker
420 620 625
John Deere
Sprayer
4920 Outer 2 Lamps 4930 Outer 2 Lamps
Tractor
8120 Outer 2 Lamps 8120T Outer 2 Lamps 8130 Outer 2 Lamps 8220 Outer 2 Lamps 8220T Outer 2 Lamps 8225R Standard Hood, Middle 2 Lamps, Eff. S/N 000101-053099 8230 Outer 2 Lamps 8230T Outer 2 Lamps 8245R Standard Hood, Middle 2 Lamps, Eff. S/N 000101-053099 8270R Standard Hood, Middle 2 Lamps, Eff. S/N 000101-053099 8295R Standard Hood, Middle 2 Lamps, Eff. S/N 000101-053099 8295RT Standard Hood, Middle 2 Lamps, Eff. S/N 900101-907100 8320 Outer 2 Lamps 8320R Standard Hood, Middle 2 Lamps, Eff. S/N 000101-053099 8320RT Standard Hood, Middle 2 Lamps, Eff. S/N 900101-907100 8320T Outer 2 Lamps 8330 Outer 2 Lamps 8330T Outer 2 Lamps 8345R Standard Hood, Middle 2 Lamps, Eff. S/N 000101-053099 8345RT Standard Hood, Middle 2 Lamps, Eff. S/N 900101-907100 8420 Outer 2 Lamps 8420T Outer 2 Lamps 8430 Outer 2 Lamps 8430T Outer 2 Lamps 8520 Outer 2 Lamps 8520T Outer 2 Lamps 8530 Outer 2 Lamps 9120 Middle 2 Lamps 9220 Middle 2 Lamps 9230 Outer 2 Lamps 9320 Middle 2 Lamps 9320T Middle 2 Lamps 9330 Outer 2 Lamps 9420 Middle 2 Lamps 9420T Middle 2 Lamps 9430 Outer 2 Lamps 9430T Outer 2 Lamps 9520 Middle 2 Lamps 9520T Middle 2 Lamps 9530 Outer 2 Lamps 9530T Outer 2 Lamps 9620 Middle 2 Lamps 9620T Middle 2 Lamps 9630 Outer 2 Lamps 9630T Outer 2 Lamps
